Our Quality
Our Quality - Our extensive in-house capabilities; fabricating, welding, bending, painting, and assembly, allows us complete control of the superior "Quality" we emplace into all of our products. Providing High-Quality products which consistently meets customer’s expectations has been a key factor in doing business since 1911.
Power Supply
Power Supply - The power supply has been designed to accommodate a panel full of controlled circuit breakers.
Flexible Communications
Flexible Communications - The flexibility of the Benjamin ArcLight Panel is in its communications controller. It has the capability to communicate, using ALL of the industry-standard serial, Ethernet and wireless protocols. This allows interface to ALL hardware and software Lighting Control and Building Management Systems available on the market.
Custom Configurations

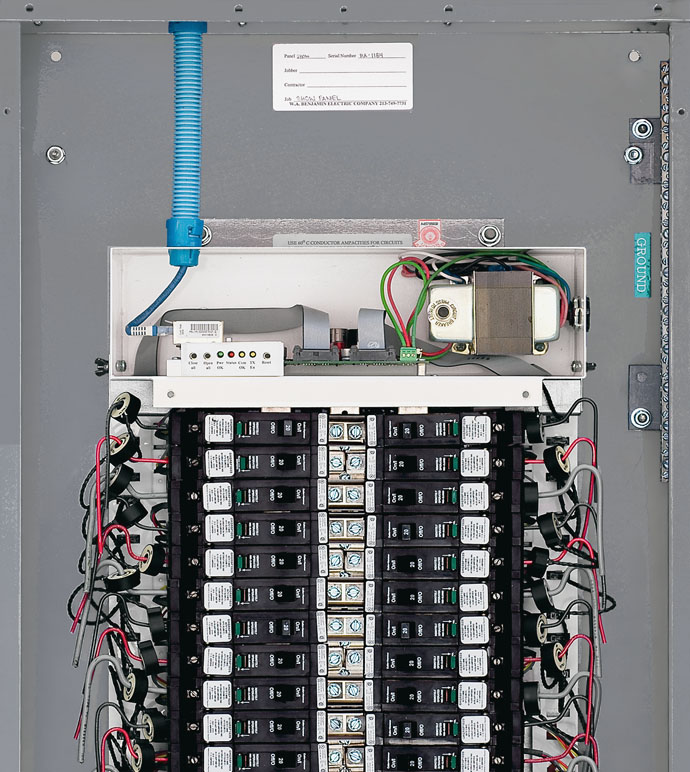

Custom Configurations - The panelboard can be configured with the desired blend of branch circuit overcurrent protection circuit breakers AND controllable branch circuit overcurrent protection circuit breakers. Eaton's Cutler-Hammer innovative solenoid operated remote controlled circuit breakers combine the protective features of the conventional circuit breaker with the switching functions of the contactor. Series ratings up to 100,000 rms amperes, which are designed to handle the demands of today's high short circuit current requirements. They have demonstrated performance of 200,000 operations and have exceeded UL requirements. UL rated for HACR, HID and SWD loads. Single and 2-pole versions are available in ratings up to 30 amperes.
Efficient Modularity

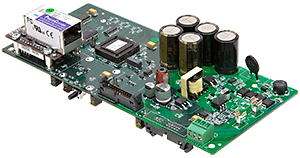

Efficient Modularity - Power Metering and Breaker Control functionality are contained on a single circuit board which interfaces to three circuit breakers. This arrangement allows the user to purchase only what is needed. As demand rises, circuit board expansion is field-upgradable to increase power metering or breaker control functionality.
Power Metering
Power Metering - Each circuit of our Embedded Power Metering Panels utilize high quality utility grade CT's which provide accurate and reliable power measurement. The CT's, in conjunction with the Benjamin designed electronics, are capable of producing a consistent measurement through a range from 0 amps to 100 amps. For additional information, please reference the specifications section contained on this website or within the ArcLight Power Metering Panel brochure.
Embedded Webserver
Embedded Webserver - Is a micro-computer based platform which provides a graphical representation of the power data through utilization of web pages called the Power Metering Interface (PMI). The PMI is comprised of pre-configured web pages that allow “quick-access” to real-time and historical power metering data for all metered circuits along with the power data measured at the panelboard’s main feed. This information is accessible using a networked PC containing a standard web browser such as Internet Explorer.
